ARKRAY is a leading company in the clinical testing market. Established in 1960 in Japan, where it has its headquarters, since more than 60 years it undertakes all phases: from R&D to production, up to sales and marketing and customer service.
Its products, distributed worldwide, include Glucometers, Glycohemoglobin analyzers, urine test analyzers and bio chemical analyzers using dry chemistry technology. They are aimed to laboratories, hospital labs, clinics, animal hospitals and more.
The ARKRAY experience is now here. Our technology and solutions are available to our customers through a direct sales network.
Here are all the advantages of being closer to our customers:
A STRONG COMPANY entering a new market with an all-new staff that is experienced and proactive. We are at the service of the customer.
A LARGE AND INNOVATIVE PRODUCT PORTFOLIO that can answer the different needs of a wide range of customers.
SCIENTIFIC SUPPORT through clinical evidence that validates the performance of our systems as well as through our technicians who have a high-level background.
A DIRECT RELATIONSHIP with the Company, ensuring frequent communication between the customer and the manufacturer.
ARKRAY researches and develops products that are designed to fulfill its customers’ needs. On the occasion of ARKRAY's arrival in The United Kingdom, ARKRAY will launch 3 new systems designed to meet the requirements of the laboratories.

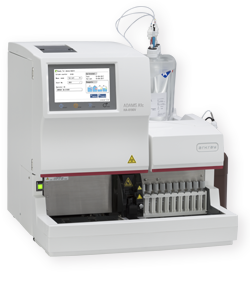

● Who are considering a renewal of their current HbA1c analyzer.
● Who need to process more HbA1c tests.
● Who value accuracy as a very important factor.
● Who would like an analyzer based on HPLC, the gold standard of measurement principles.
| Sample Type | Whole blood or hemolysis sample |
|---|---|
| Measurement items | HbA1c (stable HbA1c), HbF (In Variant mode, HbS and HbC can be separated and HbE and HbD can be detected) |
| Measurement principle | HPLC method (Reversed-phase cation exchange chromatography) |
| Measurement wavelengths |
420 nm/500 nm (Dual-wavelength colorimetry) |
| Resolution | 0.1％ Ratio. 1 mmol/mol |
| Sample consumption | Approx. 8 μL (whole blood) |
| Processing speed | Fast mode : 24 seconds / sample Variant mode : 58 seconds / sample |
| Required sample volume |
Sample tube : 10 mm or above from the bottom of sample tube Sample cup : 400 μL or above |
| Sample container | Sample tube : (φ13 or 15) x (75 - 100 mm) Sample cup : 500 μL |
| Displayed range | HbA1c : 3 to 20 %, 9 to 195 mmol/mol HbF : 0.0 to 99.9% |
| Authenticated-compatibility range | HbA1c : 4 to 16 %, 20 to 151 mmol/mol |
| Number of samples loaded | One-way transportation : Maximum of 50 samples Loop transportation : Maximum of 100 samples *Maximum of 200 samples can be loaded using the optional"Side Sampler". |
| Display | Color LCD (with touch screen) |
| Built-in printer | Thermal printer, 58 mm thermal paper |
| Memory capacity | 900 test results (including calibration results) |
| External output | Serial 1 port (Can be optionally used as an Ethernet port) |
| Measurement conditions | Temperature : 10 - 30 ℃ Humidity : 20 - 80 %RH (No condensation) |
| Power consumption | 300 VA |
| Dimensions | 530 (W) x 530 (D) x530 (H) mm * Not including the projection portions, eluent packs and hemolysis washing solution bottle. |
| Weight | Analyzer : Approx. 41 kg Sampler unit : Approx. 4 kg |
*Design and specifications may be changed without prior notice.

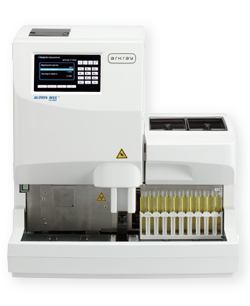

● Who are considering a renewal of their current urine analyzer.
● Who are concerned about carryover of the sample(s).
● Who value accuracy as a very important factor.
● Who would like fragmented semi-quantitative concentration levels on the test results.
| Measurement object | Urine |
|---|---|
| Reagent | AUTION Sticks/ Uriflet S |
| Measurement items | GLU (Glucose), PRO (Protein), BIL (Bilirubin), URO(Urobilinogen), PH (pH), BLD (Blood), KET (Ketones),NIT (Nitrite), LEU (Leukocytes), CRE (Creatinine), ALB(Microalbumin), P/C (Ratio of Protein to Creatinine),A/C (Ratio of Albumin to Creatinine), S.G. (Specific gravity),turbidity and color tone |
| Measurement range | Test strip: Listed in package insert of reagent Color tone: Each of the 7 colors (YELLOW, ORANGE, BROWN, RED, VIOLET, BLUE, and GREEN) has 3 levels of LIGHT, (NORMAL), and DARK (total 21 colors), plus COLORLESS and OTHER, for a total of 23 colors. Turbidity: Three levels including "clear", "turbid" and "dense turbid" |
| Measurement principle | Test strip: Dual-wavelength reflectance measurement (Single wavelength for BLD) S.G.: Reflection refractometry Color tone: Light-transmission measurement Turbidity:Light-scattering measurement |
| Measurement wavelength | 5 LED wavelengths (450, 525, 562, 635 and 760 nm) |
| Test strip reaction time | Approximately 60 seconds |
| Test strip storage | Two test strip storage compartments, each of which can contain different test strips |
| Test strip storage capacity | Maximum 200 test strips x two storage compartments |
| Processing speed | Normal measurement: Maximum 225 samples/hour Small volume measurement: Maximum 112 samples/hour |
| Required sample volume | Normal, STAT measurement: Minimum 2 mL Small volume measurement: Minimum 1 mL |
| Sample container | Sample tubes (length: 95 - 110 mm, diameter: 014.0 - 15.8 mm) |
| Sample loading capacity | One-way transportation (default): Maximum 50 samples Loop transportation: Maximum 100 samples |
| Warm-up time | Maximum 4 minutes |
| Display | Large color liquid crystal display (800 × 480 dots) |
| Built-in printer | 58-mm width printer paper (24 digits) |
| Memory capacity | Normal, STAT, small volume measurement: 2500 tests Control measurement: 200 tests Check measurement: 50 tests Trouble list: 100 tests |
| External output | 1 port (Replaceable with the optional Ethernet terminal) |
| Communication system | RS-232C compliant (Switchable between one-way and two-way) |
| Transmission speed | RS-232C: Selectable from 300, 600, 1200, 2400, 4800,9600 and 19200 bps Ethernet: 10BASE-T |
| Measurement environment | Temperature: 10 - 30°C Humidity: 30 - 60% RH (No condensation) |
| Dimensions | 530 (W) × 530 (D) × 530(H) mm(including the sampler) |
| Weight | Main body: Approximately 40 kg Sampler: Approximately 4 kg |
| Power requirements | 100 - 240 V AC (Maximum power line fluctuation of±10%) 50/60 Hz |
| Power input | Maximum 150 VA |
*Design and specifications may be changed without prior notice.

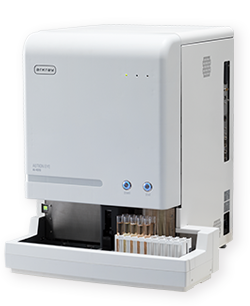

● Who are considering a renewal of their current urine sediment analyzer.
● Who would like to install a high performing but compact urine sediment analyzer.
● Who would like to lower the number of measurement procedures and streamline the process.
● Who would like to decrease the ratio of using microscopes for urine sediment measurements.
| Equipment configuration | Instrument, sampler, computer, display, hand-held barcode reader and accessories |
|---|---|
| Measurement objects | Urine |
| Reagents | Sheath solution, washing solution (for maintenance), control and calibrator |
| Measurement items | Automatic classification items: 12 items Red blood cells (RBC), white blood cells (WBC), white blood cell clumps (WBCC), squamous epithelial cells (SQEC), non-squamous epithelial cells (NSE), hyaline casts (HYAL), unclassified casts (NHC), bacteria (BACT), crystal (CRYS), yeast (YST), mucus (MUCS) and sperm (SPRM) Manual classification items: Red blood cells: 2 items Dysmorphic red blood cells (DRBC) and red blood cell clumps (RBCC) Crystal: 10 items Calcium oxalate crystal (CAOX), calcium phosphate crystal (CAPH), magnesium ammonium phosphate crystal (TPO4), leucine crystal (LEUC), uric acid crystal (URIC), calcium carbonate crystal (CACB), cystine crystal (CYST), tyrosine crystal (TYRO), amorphous salts (phosphoric acid, uric acid) (AMOR) and unclassified crystal (UNCX) Casts: 6 items Granular casts (GRAN), waxy casts (WAXY), RBC casts (RBCT), WBC casts (WBCT), epithelial casts (EPIC) and fatty casts (FATC) Yeast: 1 item Budding yeast (BYST) Epithelial cells: 2 items Renal tubular epithelial cells (REEP), urothelial cells (TREP) Fat: 2 items Fat (FAT) and oval fat body (OVFB) Other categories: 5 items Trichomonas (TRCH), inclusion cells (INCC), parasite (PARA), artifact (ART) and unclassified (UNCL) |
| Measurement time | 45 seconds/test (Excluding cases in which large numbers of formed elements are present or in the case of control measurement) |
| Warm-up time | Maximum 10 minutes (Duration after the power is turned ON. The warm-up time is extended if a readjustment process is added during startup.) |
| Measurement principle | Flow cell digital imaging |
| Measurement wavelength | 430 ～ 650 nm |
| Compensation function and others | Abnormal value display, warning display |
| Calibration method | Focus adjustment with calibrators (automatic calibration) |
| Consumption of consumables | Sheath solution consumption: 21 [mL/test] or lower (excluding cases of additional washing) |
| Processing speed | Maximum 80 measurements/hour (Excluding cases of additional wash and automatic dilution) (Maximum 106 measurements/hour is possible when no mixing mode. If you prefer no mixing mode, contact your distributor.) |
| Required sample volume | Minimum 2 mL |
| Sample container | Sample tubes (length: 95 - 110 mm, diameter: Φ14.0 - 15.8 mm) |
| Sample container loading capacity | One-way transportation Maximum 50 samples Loop transportation Maximum 100 samples Extended sampler mode Maximum 200 samples(Optional) (Original 50 samples + additional 150 samples) |
| Printer | Printer (connected to the computer) (optional) |
| Memory capacity | Measurement results (Normal) : 10000 tests* Measurement results (QC) :1000 tests Trouble list : 100 items Operation history: 3000 items Maintenance history : 1500 items Consumables replacement history : 300 items |
| External output | Communication with dedicated form CSV output |
| Communication specifications | Ethernet RS-232C |
| Measurement environment | Temperature: 15 to 30 ℃, Humidity: 20 to 80% (No condensation) |
| Dimensions | 530 (W) × 600 (D) × 650 (H) mm (including the sampler) 530 (W) × 200 (D) × 135 (H) mm (sampler only) |
| Weight | Analyzer (with the sampler) : Approx. 57 kg Sampler : Approx. 4 kg |
| Power | 100 - 240 V AC, 50/60 Hz (Including fluctuations of ±10%) |
| Power consumption | Maximum 600 VA (analyzer only) 300 W (Computer) |
* There is a limit to the number of saved images.
*Design and specifications may be changed without prior notice.

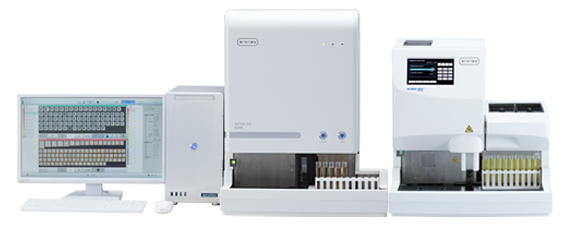

By using our new gating function, you will be able to define the criteria to automatically run urine samples on both devices, and perform a sediment confirmative analysis only based on certain findings of the urine qualitative test results. In addition, one can create a rule based on the test results of the urine qualitative tests, as to not perform a urine-formed element analysis even when it is ordered. One can arrange for a setting in agreement with one’s wishes.
Checks the reliability of measurement results by checking for deviations in measurement results between chemical tests and tangible component analysis items

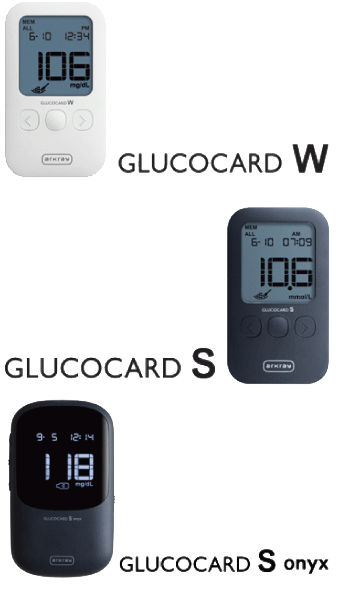

● GLUCOCARD W, GLUCOCARD S, GLUCOCARD S onyx
Who want to complete automatic calibration via the auto coding function.
Who want to use the disposal lever to dispose of used sensors.
● GLUCOCARD S and GLUCOCARD S onyx
Who want to enable patients to use the same dedicated sensors, even when using different model meters
● GLUCOCARD S onyx
Who want to use Bluetooth functions to easily manage and visualise results
| Glucocard W GT-7210 |
|
|---|---|
| Test item | Blood glucose level |
| Sample | Fresh capillary whole blood*1 |
| Sample size | 0.5 μL |
| Test strips | GLUCOCARD W Test Strips |
| Unit of measure | mg/dL or mmol/L (non-switchable) *2 |
| Test range | 10 to 600 mg/dL, 0.6 to 33.3 mmol/L |
| Hematocrit range | 20 to 70% |
| Test time | 7 seconds from blood detection |
| Temperature compensation | Automatic compensation using built-in thermo sensor |
| Power consumption | 0.02 W (Max.) |
| Memory capacity | 500 test results |
| Communication function | Yes (micro USB) |
| Auto power off | 2 minutes after last user operation (5 minutes when waiting for blood application) |
| Operating environment | Temperature: 8 to 40 °C (46.4 °F -104 °F ) Humidity: 20 to 80% RH (No condensation) |
| Dimensions | L84 × W50 × 17.6 mm (L3.3 × W2.0 × 0.7 inches) |
| Weight | Approx. 47g (1.66 ounces) |
*1 Although whole blood samples are used for measurement, displayed results are equivalent to plasma glucose levels.
*2 The unit (mg/dL or mmol/L) used with the meter varies in different countries.
You cannot change the preset unit.
Note: Not all products shown on this catalogue are offered in every market. Product features may vary by country and are subject to change.
For products specific to your area, please visit the website appropriate to your country or contact ARKRAY for more information.
*Design and specifications may be changed without prior notice.
| GLUCOCARD S GT-7110 |
|
|---|---|
| Test item | Blood glucose level |
| Sample | Fresh capillary whole blood*1 |
| Sample size | 0.3 μL |
| Test strips | GLUCOCARD S Test Strips (Supplied in a bottle or a foil packet.) |
| Unit of measure | mg/dL or mmol/L (non-switchable)*2 |
| Test range | 10 to 600 mg/dL, 0.6 to 33.3 mmol/L |
| Hematocrit range | 20 to 70% |
| Test time | 5 seconds from blood detection |
| Temperature compensation | Automatic compensation using built-in thermo sensor |
| Power consumption | 0.02 W (Max.) |
| Memory capacity | 500 test results |
| Communication function | Yes (micro USB) |
| Auto power off | 2 minutes after last user operation (5 minutes when waiting for blood application) |
| Operating environment | Temperature: 8 to 40°C (46.4 to 104°F) Humidity: 20 to 80% RH (No condensation) |
| Dimensions | L84 × W50 × 17.6 mm (L3.3 x W2.0 x 0.7 inches) |
| Weight | Approx. 47 g (1.66 ounces) |
*1 Although whole blood samples are used for measurement, displayed results are equivalent to plasma glucose levels.
*2 The unit (mg/dL or mmol/L) used with the meter varies in different countries.
You cannot change the preset unit.
Note: Not all products shown on this catalogue are offered in every market. Product features may vary by country and are subject to change.
For products specific to your area, please visit the website appropriate to your country or contact ARKRAY for more information.
*Design and specifications may be changed without prior notice.
| Glucocard S onyx GT-7120 |
|
|---|---|
| Test item | Blood glucose level |
| Sample | Fresh capillary whole blood*1 |
| Sample size | 0.3 μL |
| Test strips | GLUCOCARD S Test Strips(Supplied in a bottle or a foil packet.) |
| Unit of measure | mg/dL or mmol/L (non-switchable) *2 |
| Test range | 10 to 600 mg/dL, 0.6 to 33.3 mmol/L |
| Hematocrit range | 20 to 70% |
| Test time | 5 seconds from blood detection |
| Temperature compensation | Automatic compensation using built-in thermo sensor |
| Power consumption | 0.1 W (Max.) |
| Memory capacity | 500 test results |
| Communication function | Yes (micro USB and Bluetooth 4.0) |
| Auto power off | 2 minutes after last user operation(5 minutes when waiting for blood application) |
| Operating environment | Temperature: 8 to 40°C(46.4 to 104°F) Humidity: 20 to 80% RH (No condensation) |
| Dimensions | L 94.0 × W 57.0 × 18.5 mm (L 3.7 × W 2.2 × 0.7 inches) |
| Weight | Approx. 70 g (2.47 ounces) |
*1 Although whole blood samples are used for measurement, displayed results are equivalent to plasma glucose levels.
*2 The unit (mg/dL or mmol/L) used with the meter varies in different countries.
You cannot change the preset unit.
Note: Not all products shown on this catalogue are offered in every market. Product features may vary by country and are subject to change.
For products specific to your area, please visit the website appropriate to your country or contact ARKRAY for more information.
*Design and specifications may be changed without prior notice.
AG220525-01

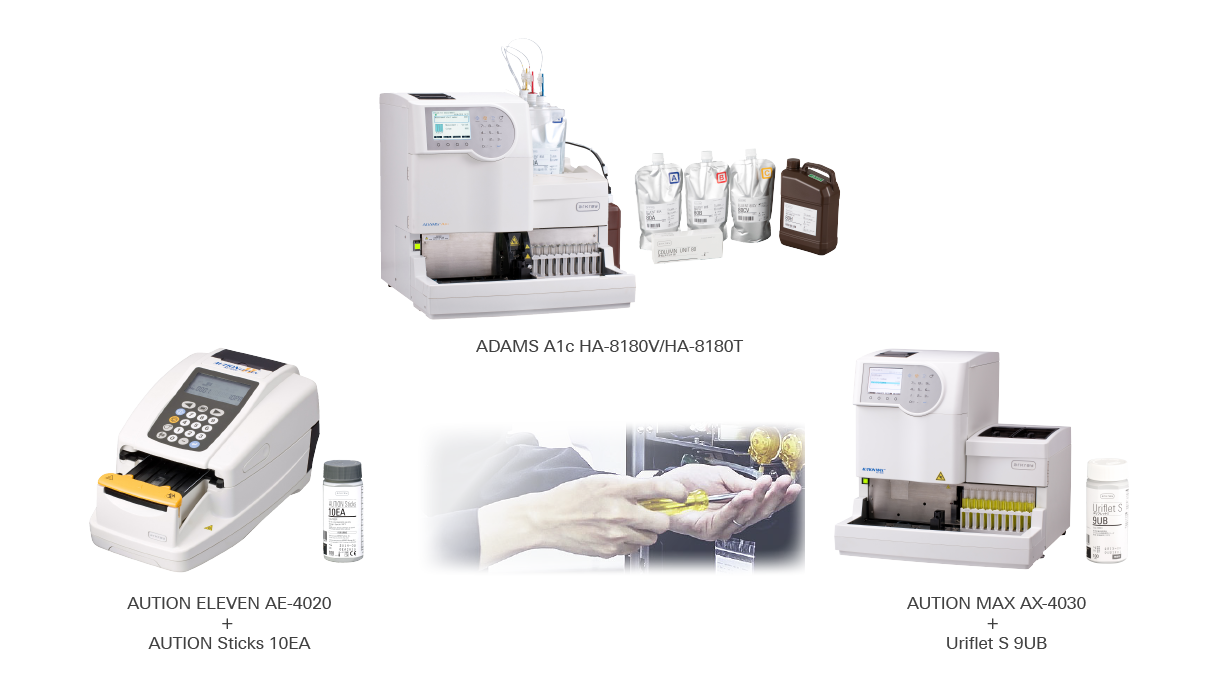

ARKRAY has officially kick-started the direct sales of reagents and consumables and provision of after-sales service in Europe.
Please contact us if you need assistance.
Our representatives will reach out to you for further information.
